FRP/GRP Pultruded Gratings

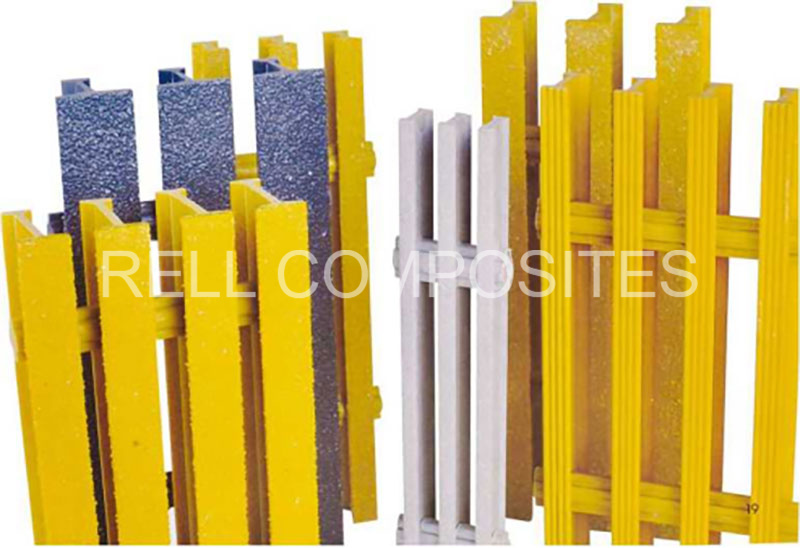

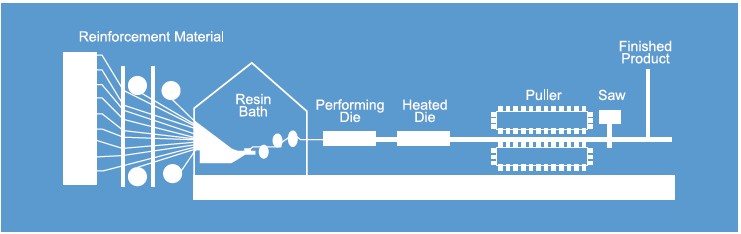

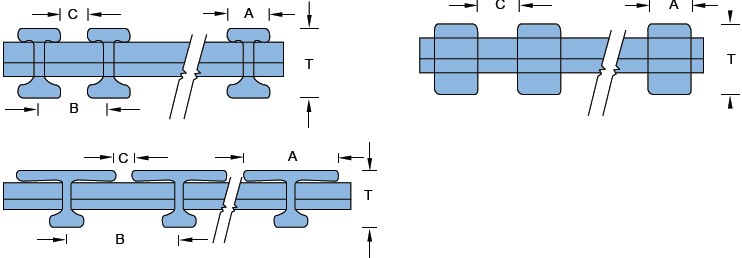

pultruded gratings are panels with open space, assembled, through specially designed process, with“I” ,“ T” and“ HL” shaped bearing bars and interlocked with solid rods or tubes, which are all pultruded.

pultruded grating is light-weight, strong, anti-fire chemical and UV resistant, and reduces costly maintenance. Aulland pultruded grating is well suited for highly corrosive environments and offers extended life,eliminating periodic maintenance and extra cost, which is a good alternative compared to steel gratings.

	Advantages of Phenolic grating： ● High anti-fire ● High anti-corrosion and anti-aging ● High anti-slippery ● Light but high loaded strength ● Long service life and maintenance free ● Non-conduction or magnetic ● Easy installation and rich colors ● Various sizes and colors available
Corrugated Surface	Smooth Surface
Gritted top cover	Gritted Surface

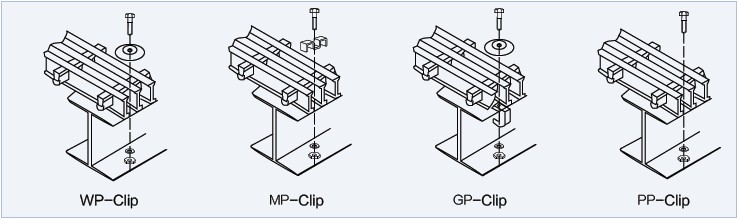

Installation Fixing for Pultruded Gratings

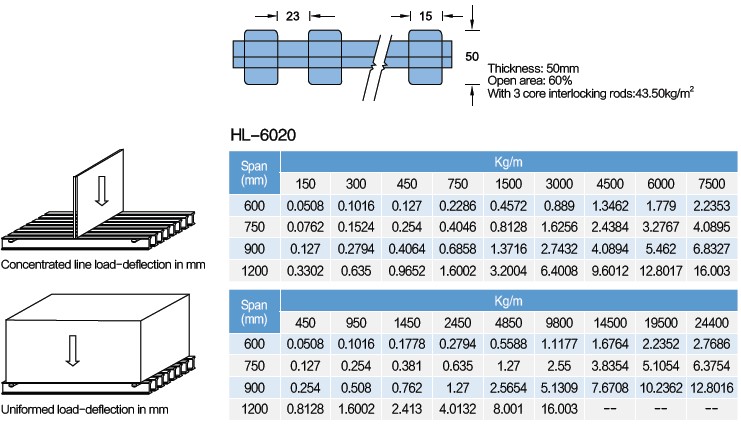

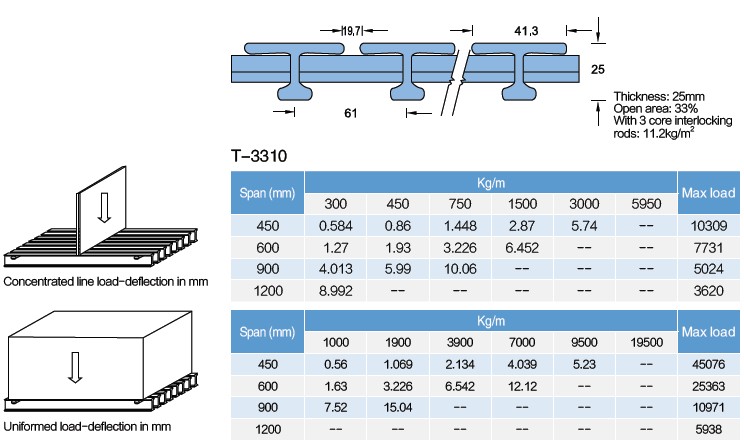

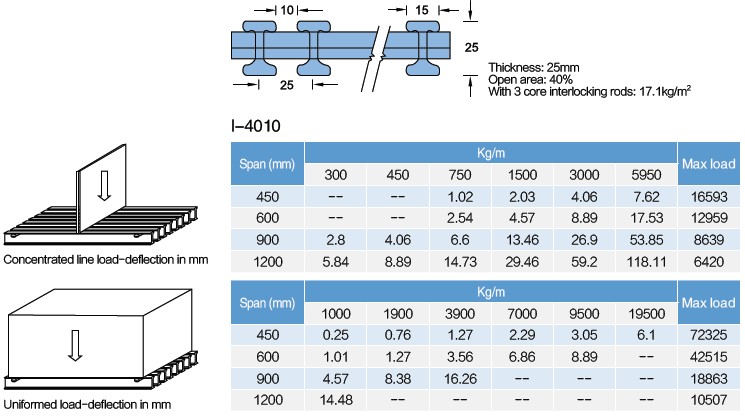

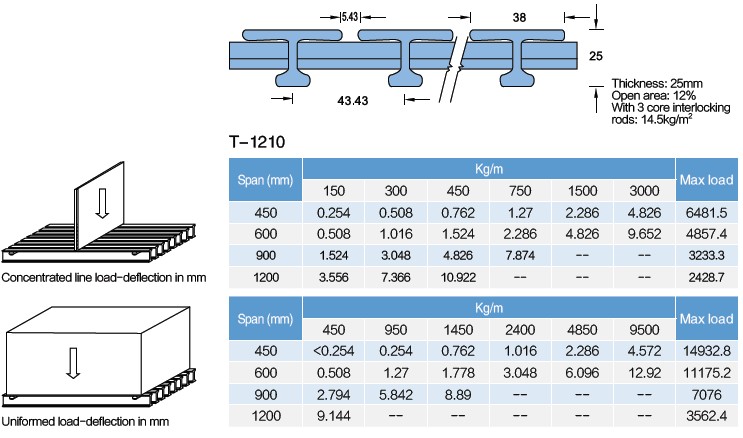

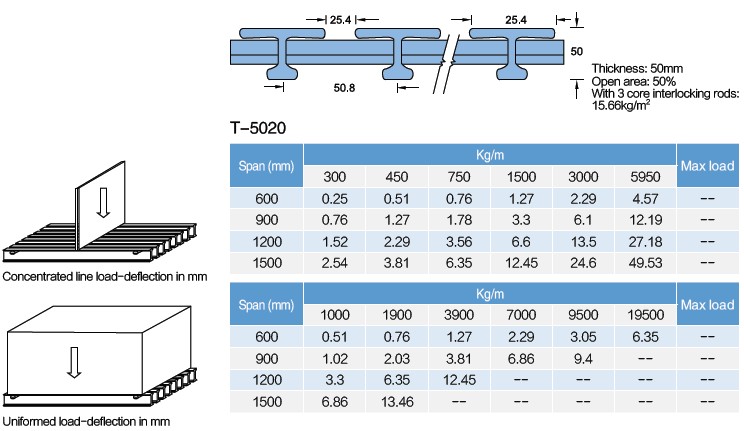

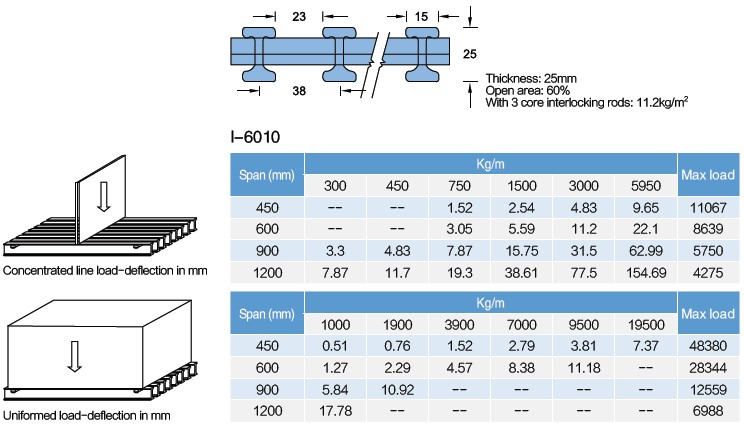

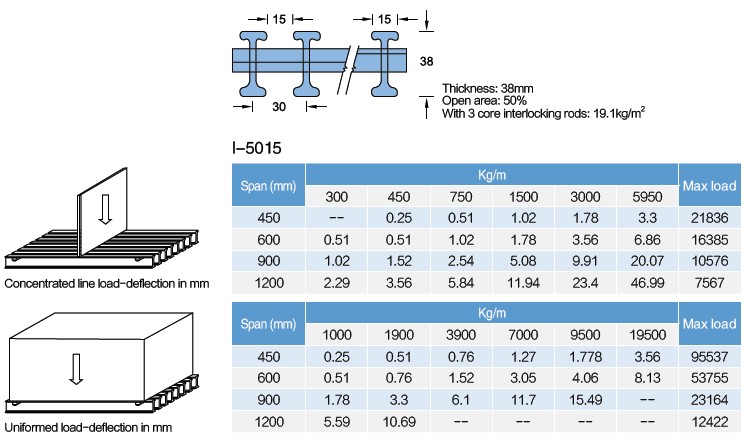

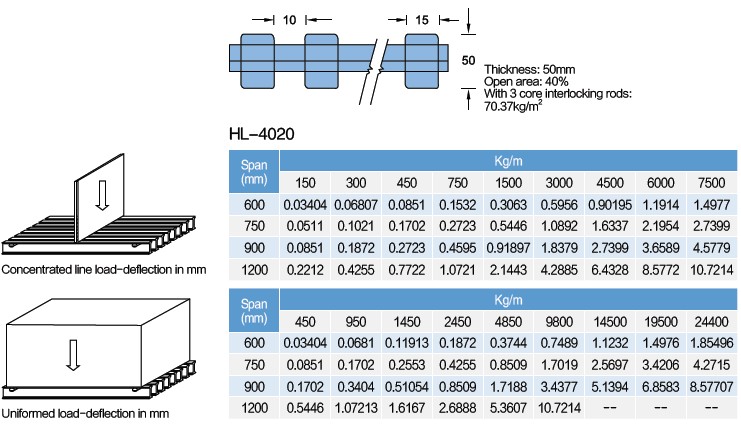

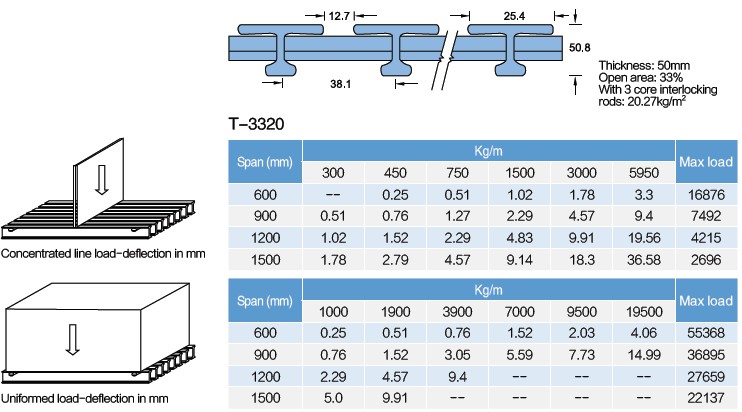

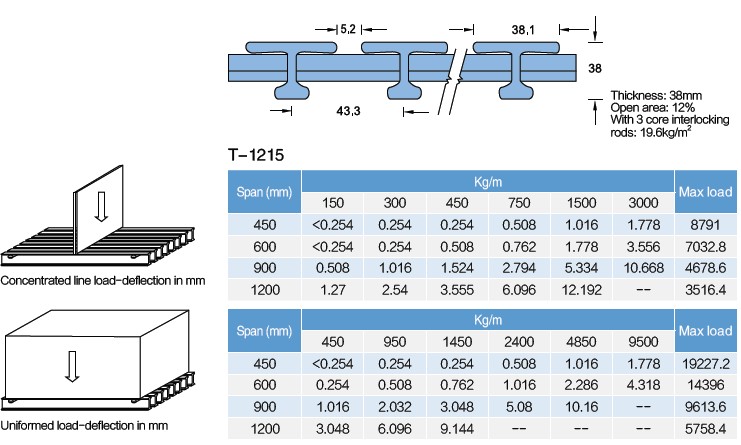

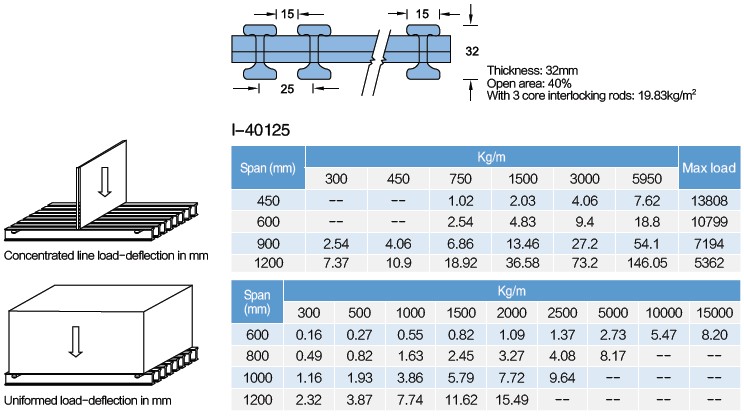

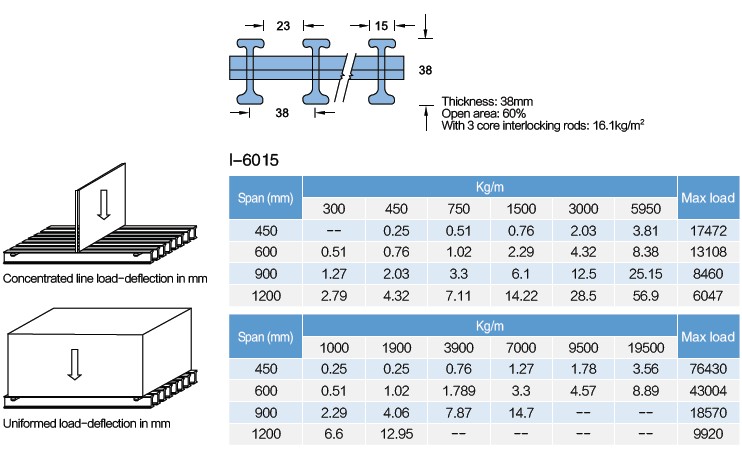

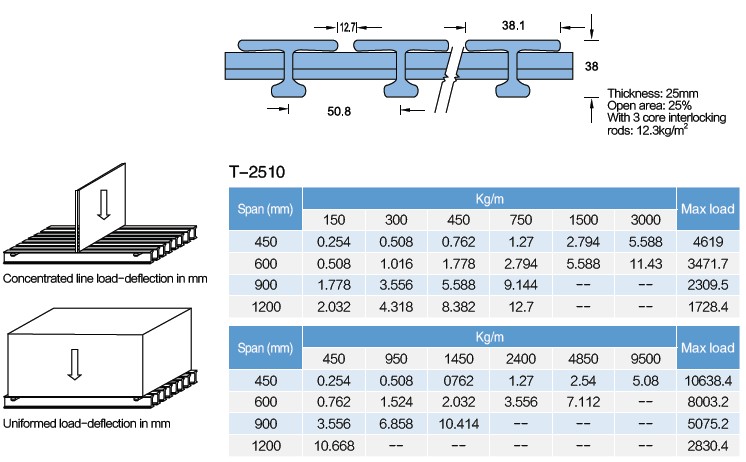

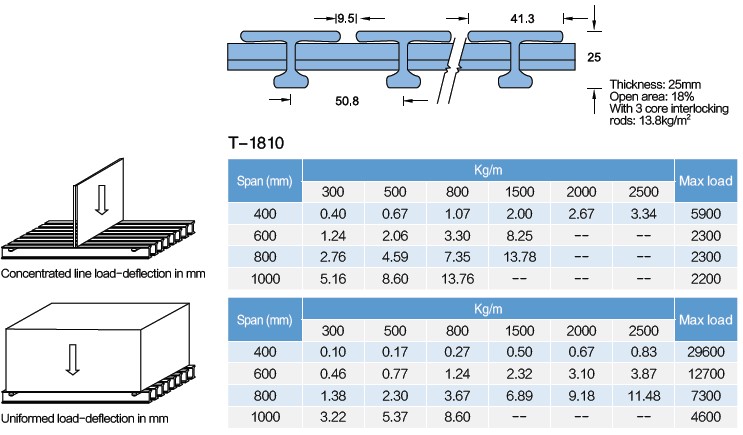

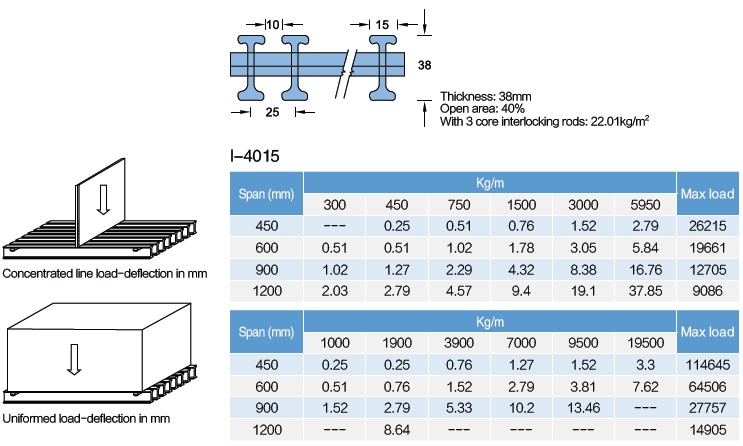

Rell Pultruded Grating in Details

Pultruded Floor Grating Super Strength, Lightweight "I" Beams For Raised Flooring & Bridges.

Pultruded Grating, Pultruded Fibreglass Grating & Pultruded GRP Grating

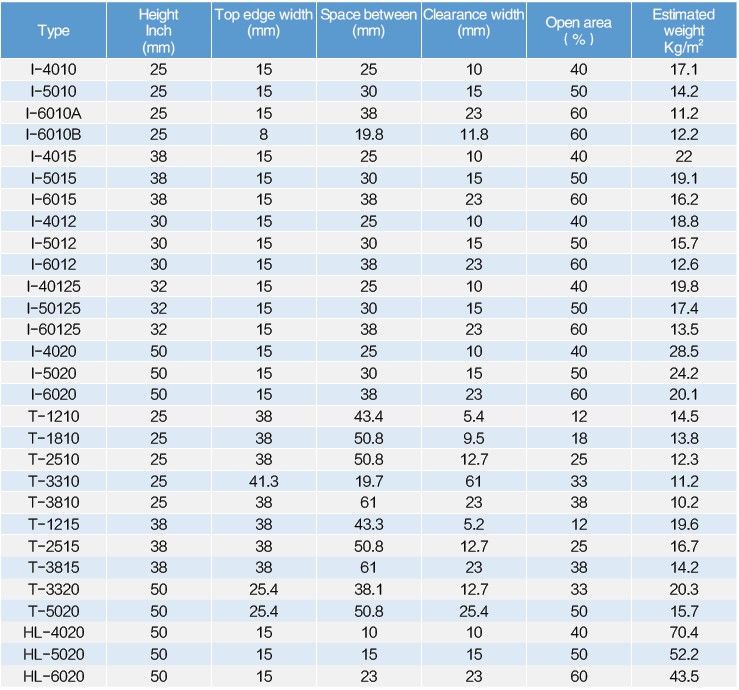

RELL COMPOSITES Pultruded grating is used in installations where exceptional load bearing and uninterrupted spans need to be bridged. The high ratio of glassfibre to resin content guarantees exceptional mechanical strength. Pultruded grating is available in 25mm, 38mm, 50mm, 75mm and 100mm thicknesses, I beam & T bar pultruded profiles and with 18% 30% 33% 35% 40% 50% & 60% open surface area.

Fibreglass Pultruded Grating Super Strength "I" Beam Grating, 25mm Up To 100mm Thickness.

Pultruded Fibreglass Grating & Pultruded GRP Grating

Angular Quartz is integrally bonded to the top surface of the Pultruded Fibreglass Grating, which produces an extremely long-lasting hardwearing surface. This gritted anti-slip texture of Pultruded Fibreglass Grating has one of the highest degrees of slip resistance ever measured for a walking surface.
